黑豹X2 Panther-x2刷Armbian教程

dwf135 83.4K 0

入了一台黑豹X2,一款ARM盒子,跟N1差不多。配置是瑞芯微RK3566   4G RAM   32G EMMC,一个千兆口和TF卡插槽,并且带WiFi和蓝牙。
默认系统是挖K的。我们直接刷Armbian系统。
首先准备工具,DriverAssitant_v5.1.1是瑞芯微的驱动。
RKDevTool_Release_v2.84是瑞芯微刷机工具。MiniLoaderAll.bin是rk3566的刷机文件。Armbian_25.02.0_rockchip_panther-x2_bookworm_6.1.121_server_2024.12.24.img是armbian镜像。

刷机工具    镜像    镜像开源地址
先安装好驱动,打开刷机工具先别动,

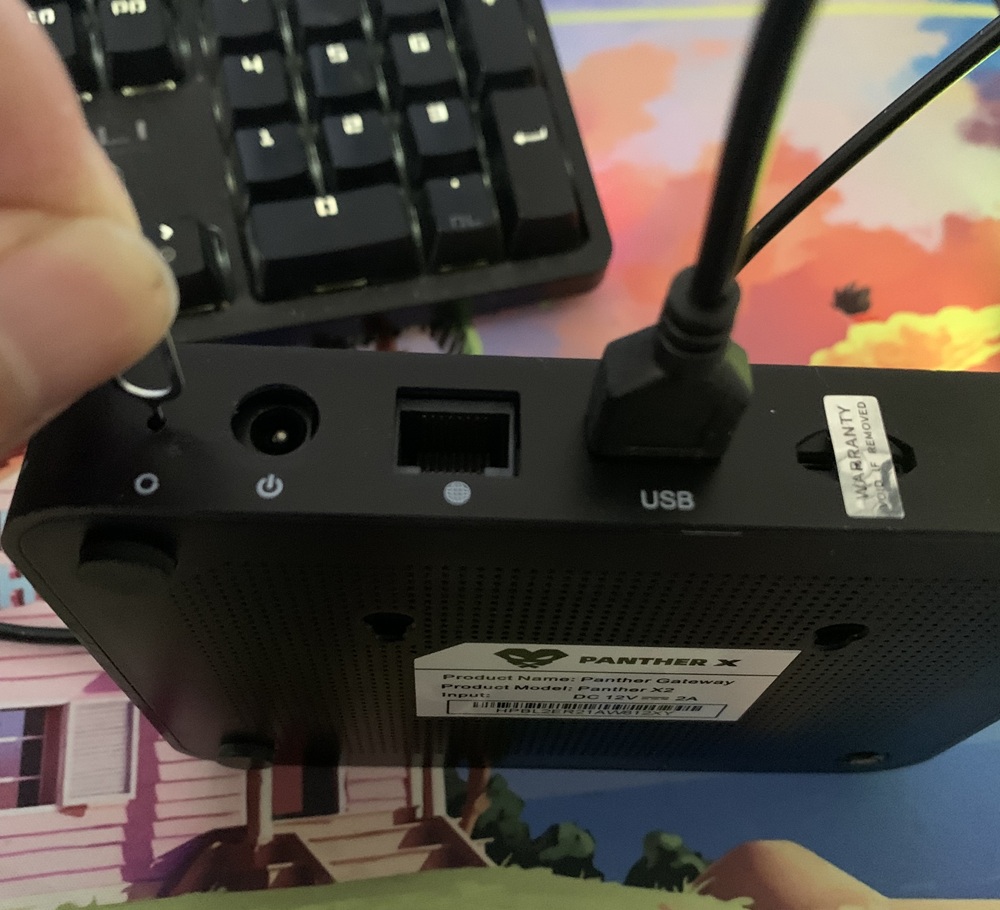

准备公对公线,用牙签或者取卡针按住重置按钮,插入USB线,这时候盒子会通电,电脑上会听到提示音。
黑豹X2 Panther-x2刷Armbian教程

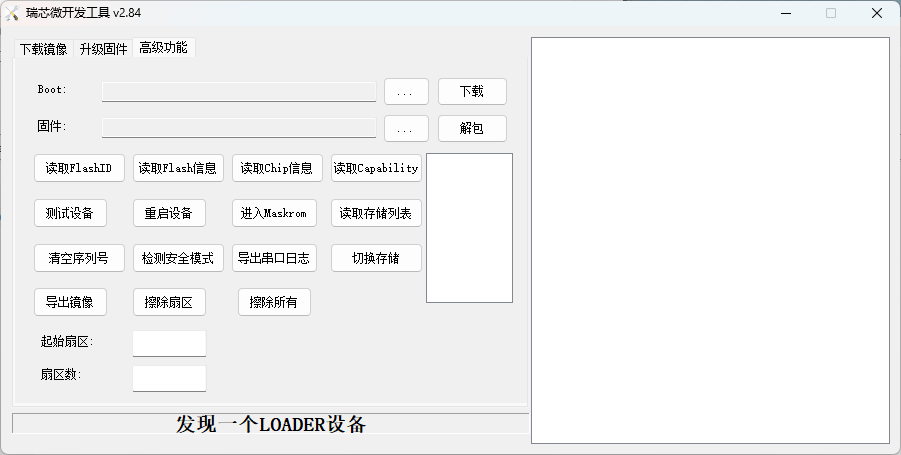

软件会提示发现一个LOADER设备,点击高级功能,进入Maskrom

黑豹X2 Panther-x2刷Armbian教程

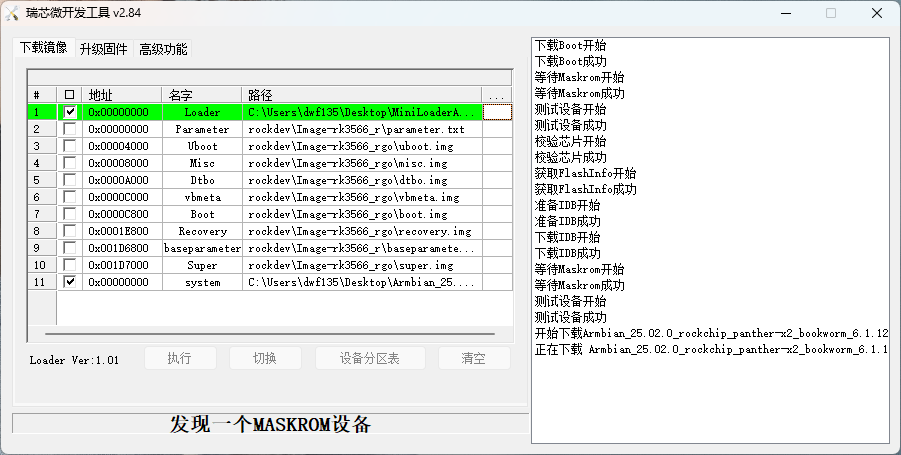

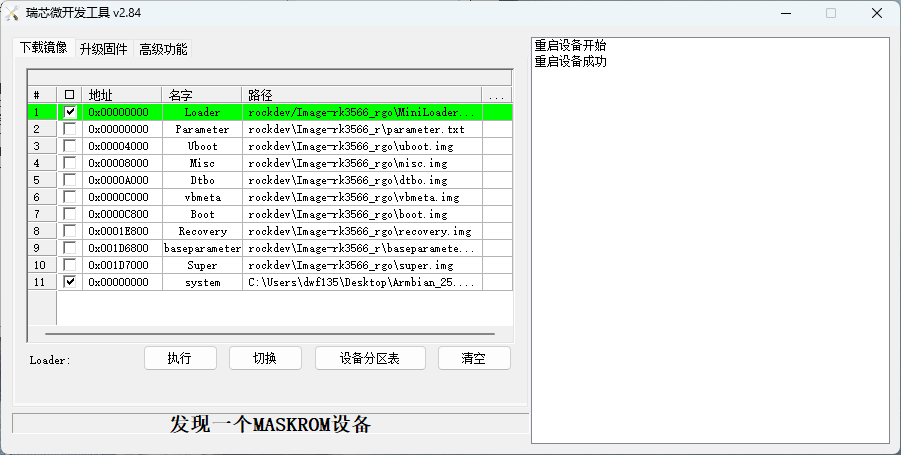

重启后第一项Loader选择MiniLoaderAll.bin,最后的system选择解压好的固件,点击执行

黑豹X2 Panther-x2刷Armbian教程 黑豹X2 Panther-x2刷Armbian教程

刷完会自动断开,这时候拔掉公对公,插上电源和网线去路由器查看IP,登录SSH初始化即可,默认账号密码root 1234

黑豹X2 Panther-x2刷Armbian教程

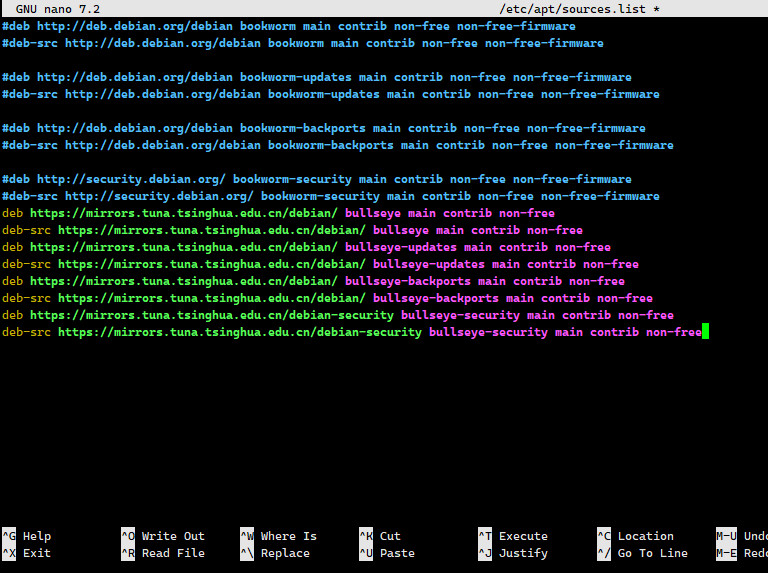

首先换源

nano /etc/apt/sources.list

原来的#掉,粘贴以下代码

deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye main contrib non-free
deb-src https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye main contrib non-free
deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-updates main contrib non-free
deb-src https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-updates main contrib non-free
deb https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-backports main contrib non-free
deb-src https://mirrors.tuna.tsinghua.edu.cn/debian/ bullseye-backports main contrib non-free
deb https://mirrors.tuna.tsinghua.edu.cn/debian-security bullseye-security main contrib non-free
deb-src https://mirrors.tuna.tsinghua.edu.cn/debian-security bullseye-security main contrib non-free

Ctrl+X,再按Y保存退出。执行apt update
黑豹X2 Panther-x2刷Armbian教程
如需要连接WiFi。输入armbian-config选择相关选项。
接下来就自己研究吧,如安装CASAOS

curl -fsSL https://get.casaos.io | sudo bash
